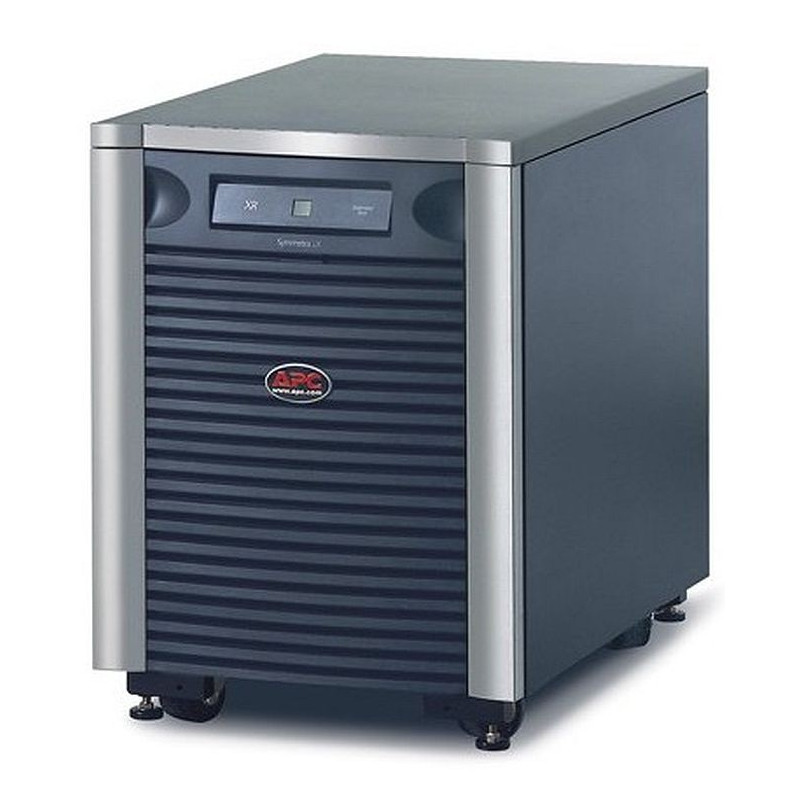

APC SYA4K8I Symmetra LX 4000VA Scalable to 8kVA N+1, 220/230/240V or 380/400/415V

Reference: SYA4K8I

Manufacturer:

APC SYA4K8I Symmetra LX 4000VA Scalable to 8kVA N+1, 220/230/240V or 380/400/415V
Model: SYA4K8I

Includes: CD with software , Documentation CD , Installation Guide , User Manual , Web/SNMP Management Card

$8,749.00 tax excl.

Data sheet

UPS Type Symmetra
Rack Mountable No
UPS Orientation Tower

More info

APC SYA4K8I Symmetra LX 4000VA Scalable to 8kVA N+1, 220/230/240V or 380/400/415V
Model: SYA4K8I

Includes: CD with software , Documentation CD , Installation Guide , User Manual , Web/SNMP Management Card

Output

  • Output power capacity
    2.8 KWatts / 4.0 kVA
  • Max Configurable Power (Watts)
    5.6 KWatts / 8.0 kVA
  • Nominal Output Voltage
    230V
  • Output Voltage Note
    Configurable for 220 : 230 or 240 nominal output voltage
  • Output Voltage Distortion
    Less than 5% at full load
  • Output Frequency (sync to mains)
    47 - 63 Hz
  • Output Frequency (not synced)
    60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
  • Other Output Voltages
    220, 240
  • Load Crest Factor
    up to 5 : 1
  • Topology
    Double Conversion Online
  • Waveform type
    Sine wave
  • Maximum Output Current
    18
  • Output Connections
    (1) Hard Wire 3-wire (H N + G) (Battery Backup)
  • Bypass
    Internal Bypass (Automatic and Manual)

Input

  • Nominal Input Voltage
    230V , 400V 3PH
  • Input frequency
    45 - 65 Hz (auto sensing)
  • Input Connections
    Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
  • Input voltage range for main operations
    155 - 276 (1:1), 290 - 480 (3:1)V
  • Input Total Harmonic Distortion
    Less than 7% for full load
  • Other Input Voltages
    220V, 240V, 380V, 415V
  • Input Power Factor at Full Load
    0.98

Batteries & Runtime

  • Battery type
    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Included Battery Modules
    1
  • Typical recharge time
    3hour(s)
  • Replacement Battery
    SYBT5
  • Battery Slots Empty
    1
  • Expected Battery Life (years)
    3 - 5
  • Extendable Run Time
    1
  • Battery Volt-Amp-Hour Capacity
    APC-Symmetra-LX-4kVA-Scalable-to-8kVA-N-1-220-230-240V-or-380-400-415V

Communications & Management

  • Interface Port(s)
    DB-9 RS-232 , Smart-Slot
  • Pre-Installed SmartSlot™ Cards
    AP9631
  • Control panel
    Multi-function LCD status and control console
  • Audible Alarm
    Audible and visible alarms prioritized by severity
  • Emergency Power Off (EPO)
    Yes
  • Available SmartSlot™ Interface Quantity
    1

Physical

  • Maximum Height
    671mm , 67.1cm
  • Maximum Width
    483mm , 48.3cm
  • Maximum Depth
    726mm , 72.6cm
  • Net Weight
    157.73kg
  • Shipping weight
    179.09kg
  • Shipping Height
    914mm , 91.4cm
  • Shipping Width
    599mm , 59.9cm
  • Shipping Depth
    997mm , 99.7cm
  • Color
    Black , Silver
  • Units per Pallet
    1.0

Environmental

  • Operating Environment
    0 - 40 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-3000meters
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-4500meters
  • Audible noise at 1 meter from surface of unit
    62.0dBA
  • Online thermal dissipation
    2762.0BTU/hr

Conformance

  • Standard warranty
    2 years repair or replace
